MP 2000 professional series measuring instruments.
The MP 2000K is a high-quality, digital, microprocessor-controlled, battery-operated measuring device for contact temperature measurement, designed for use with NiCr-Ni thermocouple sensors (type K). Measurement data can be displayed and saved on a PC via an RS-232 or USB interface using the PortaWin PC software.
Portable temperature measuring devices

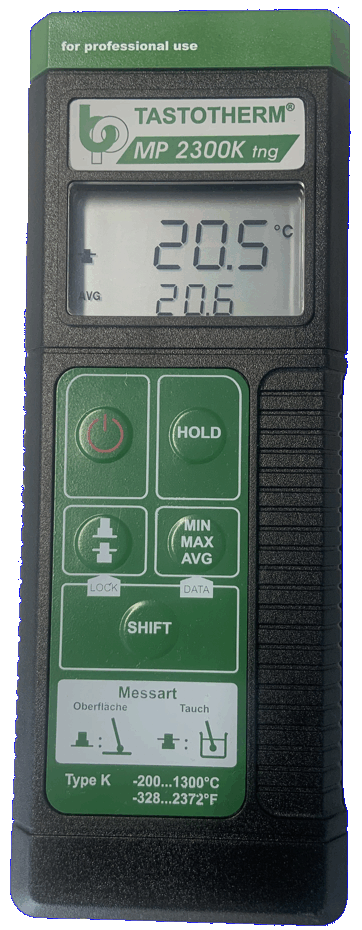

MP 2300 professional series measuring instruments.
The MP 2300 temperature measuring device is the modern further development of our proven MP 2000. It combines innovative technology with an appealing design and offers the highest precision in temperature measurement.
Appearance and design:
The MP 2300 boasts an appearance perfectly adapted to current trends. Its modern, fully digital design makes it a real eye-catcher and a perfect fit for any professional environment.
Technology and features:
- State-of-the-art, fully digital measurement and processing technology: For precise and reliable measurement results.
- Wide measuring range: -200°C to 1300°C – ideal for diverse applications.
- Battery-friendly: Longer operating times with minimal energy consumption.
- User-friendly: Intuitive operation and a clear display that always shows the current temperature as well as maximum, minimum and average values.
- Calibration certificate: The device comes with an official calibration certificate to ensure the highest accuracy.
Application areas:
The MP 2300 is the ideal tool for anyone for whom the correct temperature in various areas is of utmost importance – be it in industry, research or quality assurance.
Conclusion:
With the MP 2300 you get a professional, reliable and modern temperature measuring device that impresses with its precision and ease of use.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Temperature measuring device
TASTOTHERM ® MP 2300KR
Data interface: RS232
Article number: 4 743 620
Temperature measuring device
TASTOTHERM ® MP 2300KU
Data interface: USB
Article number: 4 743 625
Mini-series
The Tastotherm Mini series digital temperature measuring devices with thermocouple sensors for contact temperature measurement between -99.9 °C and 600 °C are handy, small and accurate. They are easy to use and fit in any pocket.
Mini T 200 with immersion sensor
Article number: 3 745 020
Mini SOT 200 with permanently attached surface/immersion sensor
Article number: 3 745 010
Mini T 300 with immersion sensor
Article number: 3 750 020

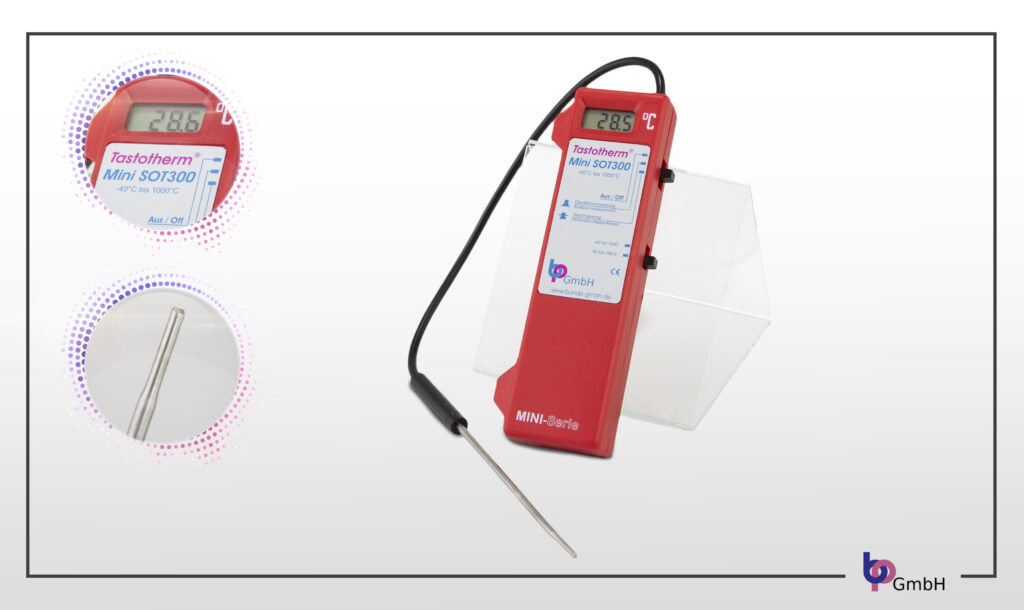

Mini SOT 300 with permanently attached surface/immersion sensor
Article number: 3 750 010
The Tastotherm Mini series digital temperature measuring devices with thermocouple sensors for contact temperature measurement between -99.9 °C and 600 °C are handy, small and accurate. They are easy to use and fit in any pocket.
Mini T 200 with immersion sensor
Article number: 3 745 020
Mini SOT 200 with permanently attached surface/immersion sensor
Article number: 3 745 010
Mini T 300 with immersion sensor
Article number: 3 750 020
Mini SOT 300 with permanently attached surface/immersion sensor
Article number: 3 750 010

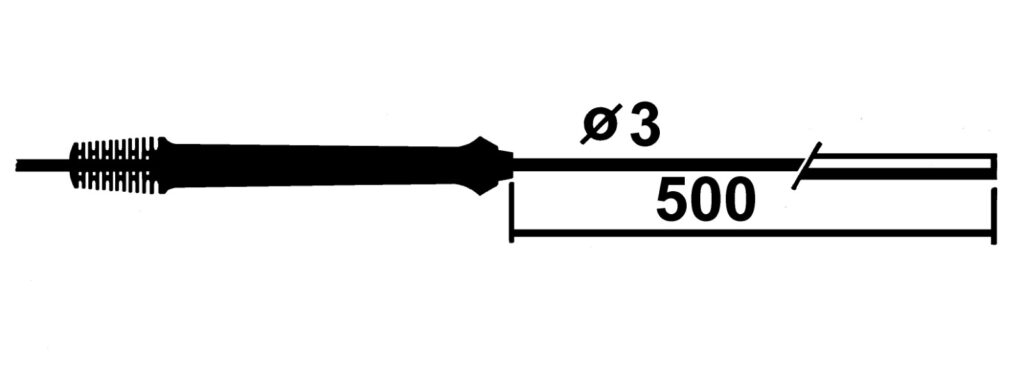

TASTOTHERM® – O 1301 (1100°C)
Standard surface sensor, sensor tube length 500 mm, measuring temperature 1100°C (briefly up to 1200°C), adjustment time 12 seconds, coiled cable 1.8 m long
Article number: 3 741 180 (datasheet)

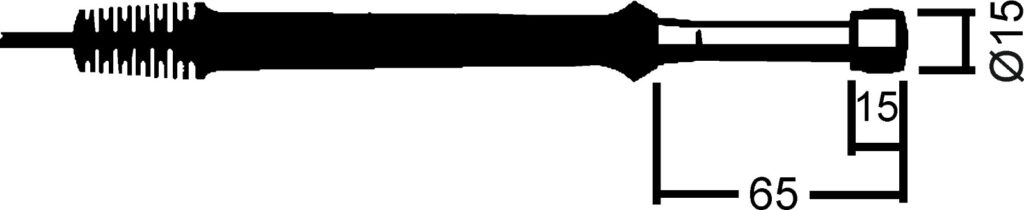

TASTOTHERM® – GO 1301 (500°C)
Compatible with Mawi-Therm OKA series
Straight tape probe up to 500°C , setting time 1-2 seconds, coiled cable 1.8 m long, probe head length = 65 mm
Article number: 3 741 130 (datasheet)

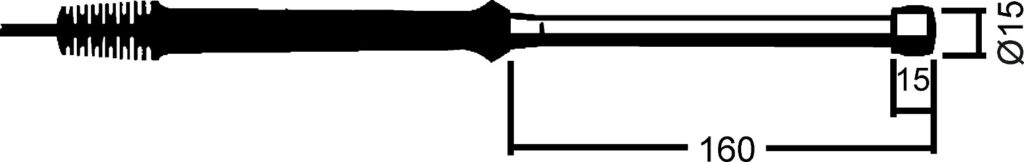

TASTOTHERM ® – GO 1401 (800°C)
Compatible with Mawi-Therm OKA series
Straight tape probe up to 800°C , setting time 1-2 seconds, coiled cable 1.8 m long, probe head length = 160 mm
Article number: 4 743 250 (datasheet)

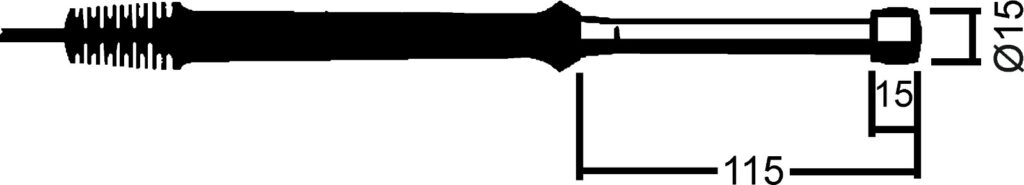

TASTOTHERM ® – GO 1301-100 (500°C)
Compatible with Mawi-Therm OKA series
Straight tape sensor up to 500°C , setting time 1-2 seconds, coiled cable 1.8 m long, sensor head length = 115 mm
Article number: 3 741 130/100
TASTOTHERM® – HO 1301M (300°C)
Standard surface sensor, sensor tube length 500 mm, measuring temperature 1100°C (briefly up to 1200°C), adjustment time 12 seconds, coiled cable 1.8 m long
Article number: 3 741 180 (datasheet)
TASTOTHERM ® – HO 1301M-100 (300°C)
Compatible with Mawi-Therm OKA series
Angled tape sensor up to 300°C , Ø 12/100 mm,
response time: 1-2 s, coiled cable: 1.8 m
Article number: 3 741 140/100
TASTOTHERM ® – HO 1301E (500°C)
Compatible with Mawi-Therm OKA series
Angled tape sensor up to 500°C , Ø 15/50 mm,
response time: 1-2 s, coiled cable: 1.8 m
Article number: 4 741 220
TASTOTHERM ® – HO 1301E-100 (500°C)
Compatible with Mawi-Therm OKA series
Angled tape sensor up to 500°C , Ø 15/100 mm,
response time: 1-2 s, coiled cable: 1.8 m
Article number: 4 741 220/100

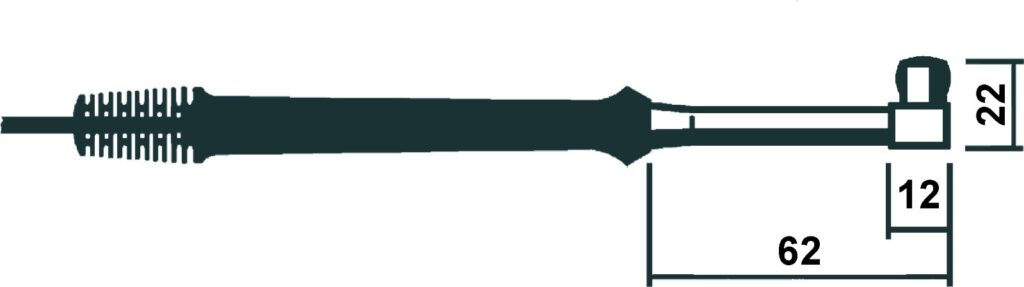

TASTOTHERM ® – HO 1301L (500°C)
Compatible with Mawi-Therm OKA series
Angled belt sensor up to 500°C , setting time 1-2 seconds, coiled cable 1.8 m long
Article number: 3 741 090 (datasheet)

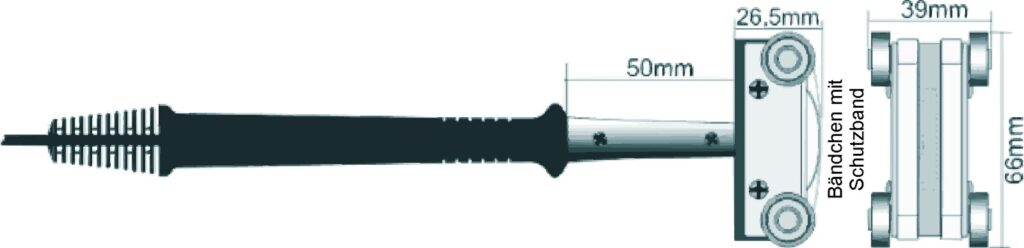

TASTOTHERM ® – R O 2000 (200°C)
Compatible with Mawi-Therm OK 511
Roller surface sensor up to 200°C ,
for measurements of running rollers/webs up to 5 m/min, adjustment time: 2-5 s, spiral cable: 1.5 m
Article number: 3 741 190 (datasheet)
TASTOTHERM ® – BT 1301 (1100°C)
Compatible with Mawi-Therm TKM series
Flexible sheathed thermocouple sensor, robust, Inconel probe tube, up to 1100°C , briefly up to 1200°C, settling time: 5 s, coiled cable: 1.8 m Article number: 3 741 040 (datasheet) |

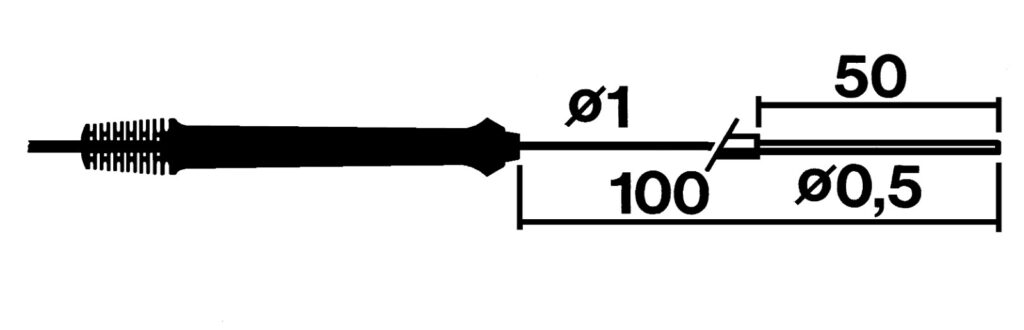

TASTOTHERM ® – BT 1301D (1100°C)
Compatible with Mawi-Therm TKM series
Thin sheathed thermocouple sensor, robust, Inconel probe tube up to 1100°C , briefly up to 1200°C, settling time: 0.5 s, coiled cable: 1.8 m
Article number: 3 741 050 (datasheet)
TASTOTHERM ® – BT 2000 (1100°C)
Compatible with Mawi-Therm TKAL series
Inexpensive mineral-insulated sensor, extremely thin and fast, up to 1100°C , response time: 3 s, cable: 1.5 m
Article number: 3 759 140 (datasheet)
TASTOTHERM ® – FT 1301 (350°C)
Flexible thermocouple sensor up to 350°C according to DIN 44547, for measurement in ovens or electrical appliances
Article number: 3 758 270 (datasheet)
TASTOTHERM ® – FT 1202 (400°C)
Compatible with Mawi-Therm TKF series
Free thermocouple with glass fiber insulated thermowire up to 400°C , complete with plug and 2 m thermocouple cable
Article number: 3 758 250 (datasheet)
TASTOTHERM ® – ET 1301L (600°C)
Compatible with Mawi-Therm SKN series
Penetrating probe up to 600°C with angled probe tube for measuring plastic media, settling time: 5 s, coiled cable: 1.8 m
Article number: 3 741 070 (datasheet)
TASTOTHERM ® – ET 1301K (600°C)
Compatible with Mawi-Therm SKN series
Penetrating probe up to 600°C with angled probe tube for measuring plastic media, settling time: 3 s, coiled cable: 1.8 m
Article number: 3 741 070 (datasheet)
TASTOTHERM ® – OT 2000 (600°C)
Cost-effective sensor for surface and immersion measurements up to 600°C , response time: 5 s, cable: 1.5 m
Article number: 3 759 110 (datasheet)

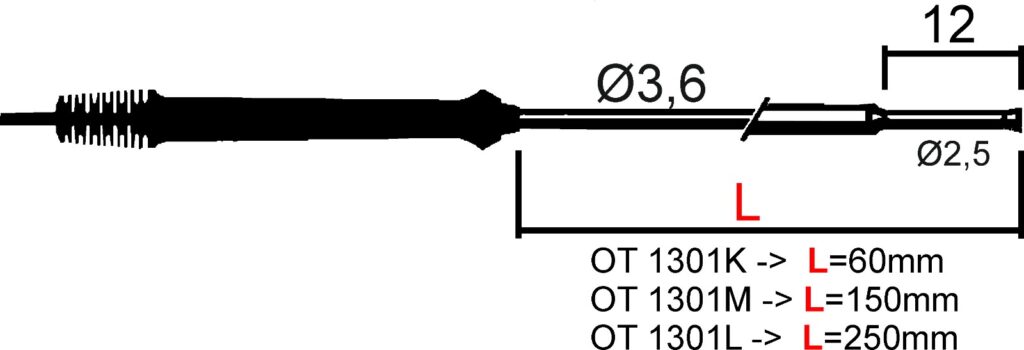

TASTOTHERM ® – OT 1301 K – OT 1301 M – OT 1301 L (600°C)
Standard sensors in 3 different lengths (60 mm [ K ], 150 mm [ M ], 250 mm [ L ]), up to 600°C , response time: 5 s, coiled cable: 1.8 m
OT 1301 K – Article number: 3 741 020 (Data sheet)
OT 1301 M – Article number: 3 741 210 (Data sheet)
OT 1301 L – Article number: 3 741 010 (Data sheet)

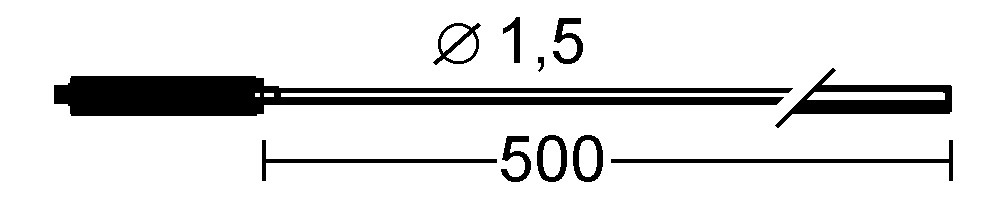

TASTOTHERM ® – OT 2020-500 (600°C)
Sensor tube length = 500 mm, surface/immersion sensor, usable up to a maximum of 600°C
Article number: 4 741 180 (datasheet)

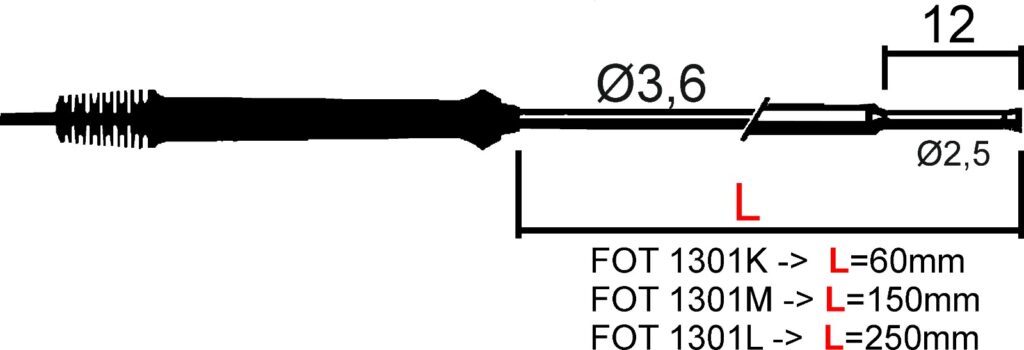

TASTOTHERM ® – FOT 1301 K – FOT 1301 M – FOT 1301 L (600°C)
Spring-loaded sensor tube with a defined contact force of 20 N, up to 600°C , response time: 5 s, coiled cable: 1.8 m
FOT 1301 K – Article number: 3 741 120 (Data sheet)
FOT 1301 M – Article number: 3 741 220 (Data sheet)
FOT 1301 L – Article number: 3 741 110 (Data sheet)

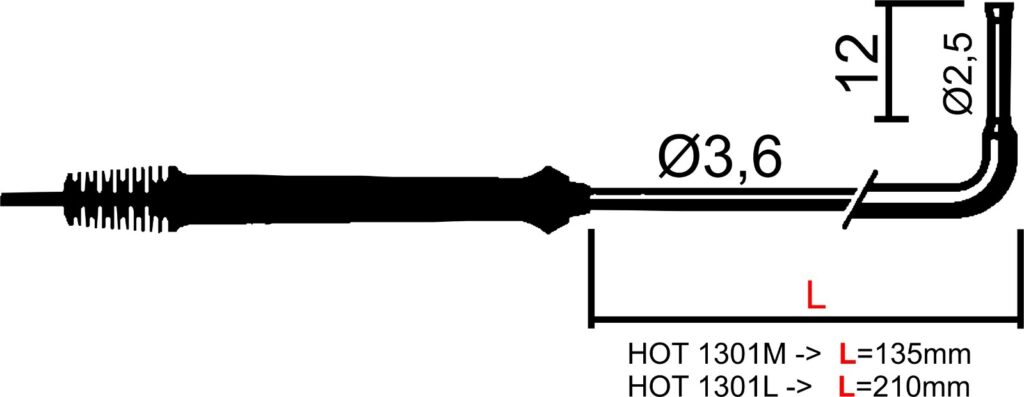

TASTOTHERM ® – HOT 1301 M – HOT 1301 L (600°C)
Sensor for measuring in hard-to-reach places, up to 600°C , response time: 5 s; coiled cable: 1.8 m
HOT 1301 M – Article number: 3 741 170 (Data sheet)
HOT 1301 L – Article number: 3 741 030 (Data sheet)

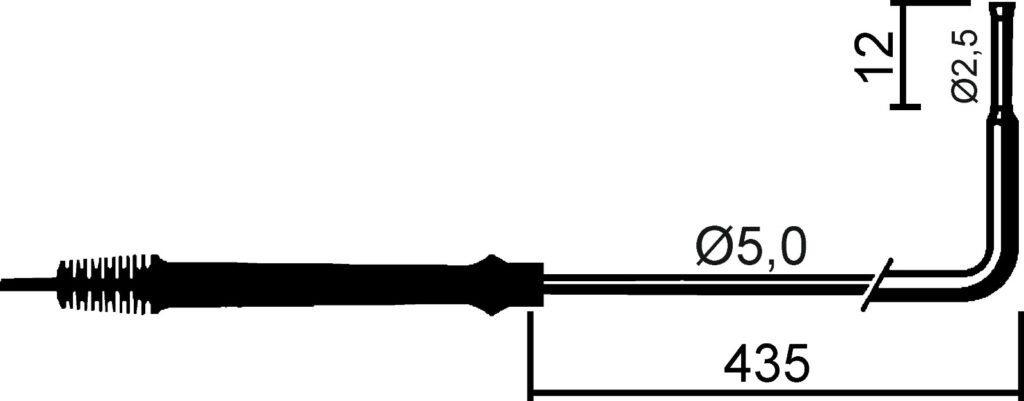

TASTOTHERM ® – HOT 2020-435 (600°C)
Sensor for measuring in hard-to-reach places, up to 600°C , response time: 5 s; coiled cable: 1.8 m Article number: 4 741 190 (datasheet) |

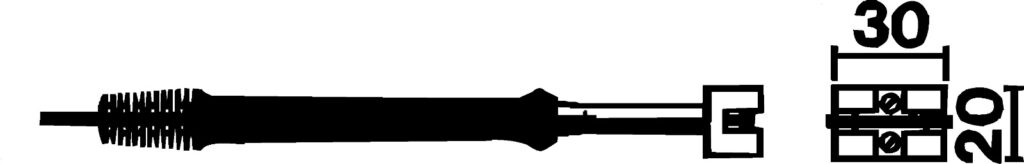

TASTOTHERM ® – WO 1301 (250°C)
Cylindrical sensor up to 250°C , spring-clamped thermocouple for cylindrical objects, response time: 2 s, coiled cable: 1.8 m
Article number: 3 741 080 (datasheet)
TASTOTHERM ® – R O 2000 (200°C)
(compatible with Mawi-Therm OK 511 )
Roller surface sensor up to 200°C ,
for measurements of running rollers/webs up to 5 m/min, adjustment time: 2-5 s, spiral cable: 1.5 m
Article number: 3 741 190 (datasheet)
